ALTUS DOORS

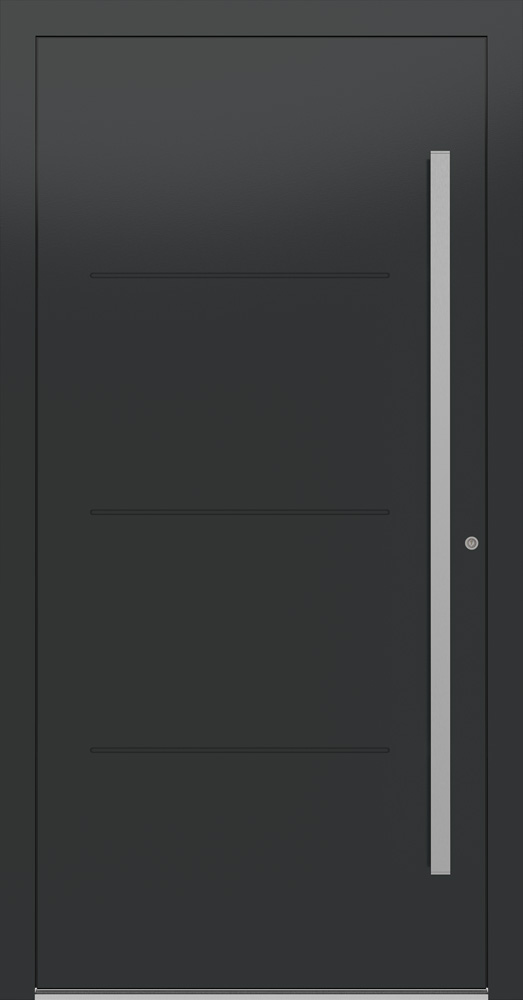

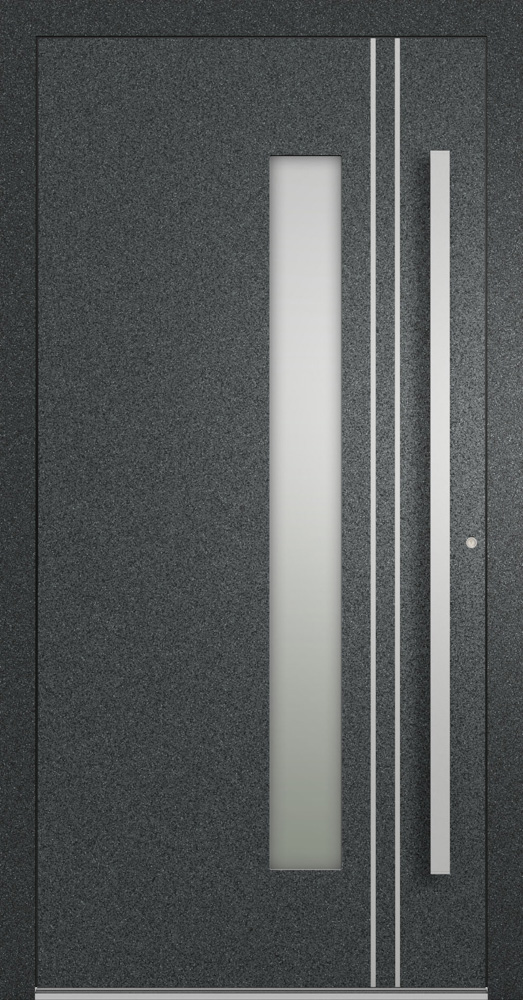

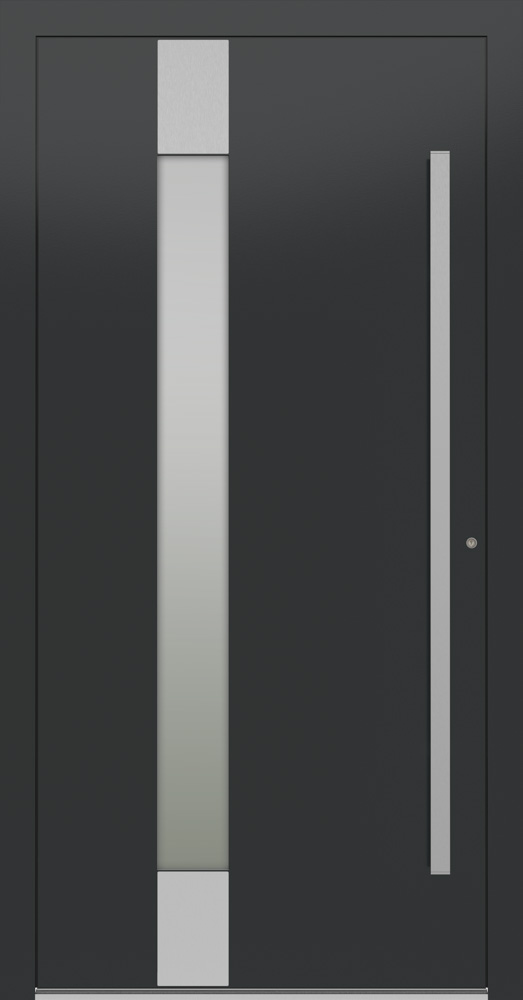

Anti-burglary external front doors have been designed to achieve the best thermal insulation parameters. Available in 35 patterns and 6 colours.
It is possible to order the door in any other RAL colour.
-
Heat transfer coefficient (in W / m²K): from 0.74
-
Burglary resistance: to RC3
-
Sizes: 90N, 90E / Customised size – 5 mm steps
Details
details
Characteristic
-
Heat transfer coefficient (in W / m²K): from 0.74
-
Burglary resistance: to RC3
-
Sizes: 90N, 90E / Customised size – 5 mm steps
Description
ALTUS aluminium doors are energy-saving doors with thermal transmittance of 0.74 W/m2K for solid doors and 0.81 W/m2K for glazed doors. As a standard, ALTUS doors have a patented “anti-bimetal” interlayer, specially designed insulators significantly increase the thermal insulation parameter and have a substantial impact on reducing the costs of energy.
The colors
the-colors
Additional colors from the RAL palette are available on request (an additional PLN 500)
Construction
construction
![ALTUS](https://gerda.pl/wp-content/uploads/2020/10/ALTUS_skrzydlo.jpg)
ALTUS
ALTUS doors are energy-saving doors with thermal transmittance of 0.74 W/m2K for solid doors and 0.81 W/m2K for glazed doors. Thermo-compensators ideally solve the problem of deformations caused by high insolation of the door.
Inimitable fixing of the door fittings in the insulator provides an original design and a unique aesthetic experience. The construction of ALTUS aluminium doors allows for a uniform surface from both: inside and outside.
Innovative ALTUS doors provide very good thermal insulation, reliable operation of the leaf, security and comfort for many years.
ALTUS Details
![<p style="text-align: center;"><strong>Door frame</strong></p>
<p style="text-align: center;">Aluminium multi-chamber frame with built-in compensators matching colour of the door leaf.</p>](https://gerda.pl/wp-content/uploads/2020/10/oscieznica.jpg)
Door frame
Aluminium multi-chamber frame with built-in compensators matching colour of the door leaf.
![<p style="text-align: center;"><strong>Door thickness</strong></p>](https://gerda.pl/wp-content/uploads/2020/10/altus_grubosc_drzwi.jpg)
Door thickness
![<p style="text-align: center;"><strong>Strip lock</strong></p>
<p style="text-align: center;">Installation of the lock along the entire height of the leaf.</p>](https://gerda.pl/wp-content/uploads/2020/10/Zamek_listwowy.jpg)
Strip lock
Installation of the lock along the entire height of the leaf.
![<p style="text-align: center;"><strong>Anti-burglary pins</strong></p>
<p style="text-align: center;">Fixed anti-burglary pins in metal supports.</p>](https://gerda.pl/wp-content/uploads/2020/10/bolce_antywywazeniowe.jpg)
Anti-burglary pins
Fixed anti-burglary pins in metal supports.
![<p style="text-align: center;"><strong>Threshold</strong></p>
<p style="text-align: center;">Warm aluminium threshold with a thermal interlayer to ensure better thermal insulation properties.</p>](https://gerda.pl/wp-content/uploads/2020/10/prog.jpg)
Threshold
Warm aluminium threshold with a thermal interlayer to ensure better thermal insulation properties.
![<p style="text-align: center;"><strong>Concealed hinge</strong></p>
<p style="text-align: center;">(at extra charge)</p>](https://gerda.pl/wp-content/uploads/2020/10/zawias_ukryty_-_doplata.jpg)
Concealed hinge
(at extra charge)
![<p style="text-align: center;"><strong>Roller hinge </strong></p>
<p style="text-align: center;">Roller hinge matching the door colour.<br />
(at extra charge)</p>](https://gerda.pl/wp-content/uploads/2020/10/zawias_rolkowy_-_doplata.jpg)
Roller hinge
Roller hinge matching the door colour.
(at extra charge)
![<p style="text-align: center;"><strong>Overlay hinge</strong></p>
<p style="text-align: center;">Overlay hinge in the color of the door leaf.</p>](https://gerda.pl/wp-content/uploads/2020/10/zawias_nakladkowy.jpg)
Overlay hinge
Overlay hinge in the color of the door leaf.
![<p style="text-align: center;"><strong>Ring escutcheon plate</strong></p>
<p style="text-align: center;">Ensuring protection of the cylinder from being broken through.<br />
(at extra charge)</p>](https://gerda.pl/wp-content/uploads/2020/10/szyld_pierscieniowy.jpg)
Ring escutcheon plate
Ensuring protection of the cylinder from being broken through.
(at extra charge)
![<p style="text-align: center;"><strong>K1 handle </strong></p>
<p style="text-align: center;">Modern design of stainless-steel handle with split escutcheon plate.</p>](https://gerda.pl/wp-content/uploads/2020/10/Klamki_K1.jpg)
K1 handle
Modern design of stainless-steel handle with split escutcheon plate.
![<p style="text-align: center;"><strong>K2 handle</strong></p>
<p style="text-align: center;">Aluminium handles on a long escutcheon plate.<br />
(at extra charge)</p>](https://gerda.pl/wp-content/uploads/2020/10/Klamki_K2.jpg)
K2 handle
Aluminium handles on a long escutcheon plate.
(at extra charge)
![<p style="text-align: center;"><strong>Pull handle</strong></p>
<p style="text-align: center;">One-sided stainless steel handrail on the outside of the door.<br />
(for an extra charge)</p>](https://gerda.pl/wp-content/uploads/2020/10/download-78.png)
Pull handle
One-sided stainless steel handrail on the outside of the door.
(for an extra charge)
![<p style="text-align: center;"><strong>Adjustable latch catch</strong></p>
<p style="text-align: center;">It enables smooth adjustment of the pressure of the leaf to the seals.</p>](https://gerda.pl/wp-content/uploads/2020/10/regulowany_zaczep_zapadki.jpg)
Adjustable latch catch
It enables smooth adjustment of the pressure of the leaf to the seals.
