TYTAN ZX
Anti-burglary surface lock GERDA TYTAN ZX
Find a partner-
Protection class according to the Polish standard: 7
-
Product protection class Gerda Class: 12
-
Number of Keys: 4
-
NATO certificate: yes
-
IMP certificate: yes
Characteristic
characteristic
Certificate
Lock classification according to PN-EN 12209: 2005:
3 C 1 0 0 C 7 E A 0 H
Certificate issued by the Institute of Precision Mechanics
GERDA TYTAN ZX anti-burglary surface lock.
Gerda TYTAN is a family of locks that are the result of long-term research and experience. Advanced technologies which were used in the production of these locks allowed them to obtain the highest security certificate (they have a class 7 Security Certificate according to PN-EN 12209 standard). Unbeaten by burglars for many years, TYTAN ZX locks set the highest standard in security. Proven in millions of units, this anti-burglary surface lock is a synonym of reliability and durability.
Technical specifications
- The highest security class 7, according to PN-EN 12209: 2005,
- over 4 billion key combinations,
- knob lock option,
- anti-burglary blockade,
- possibility of standardization under one key, possibility of execution in the Master Key system
Description
GERDA TYTAN ZX anti-burglary surface lock
Gerda TYTAN is a family of locks that are the result of long-term research and experience. Advanced technologies which were used in the production of these locks allowed them to obtain the highest security certificate (they have a class 7 Security Certificate according to PN-EN 12209 standard). Unbeaten by burglars for many years, TYTAN ZX locks set the highest standard in security. Proven in millions of units, this anti-burglary surface lock is a synonym of reliability and durability.
Technical specifications
technical-specifications
Technical specifications:
- the highest security class – 7
- TYTAN cylinder with over 4,000,000,000 key code combinations
- possibility of ordering in the TYTAN-VARIANT system with recombination of key valves
- knob lock (optional without lock)
- anti-burglary blockade
- standard clamp included
- easy to install on both flush and rebated doors
- can be used for doors up to 53 mm thick
- the possibility of unification under one key
- the possibility of building the GERDA General Key System
- four keys included
Accessories:
- accessories allowing for installation in doors with a thickness greater than 45 mm and additional clamps can be found in the ACCESSORIES tab

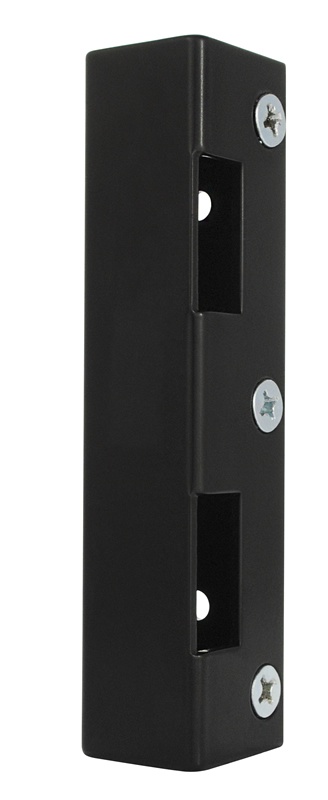

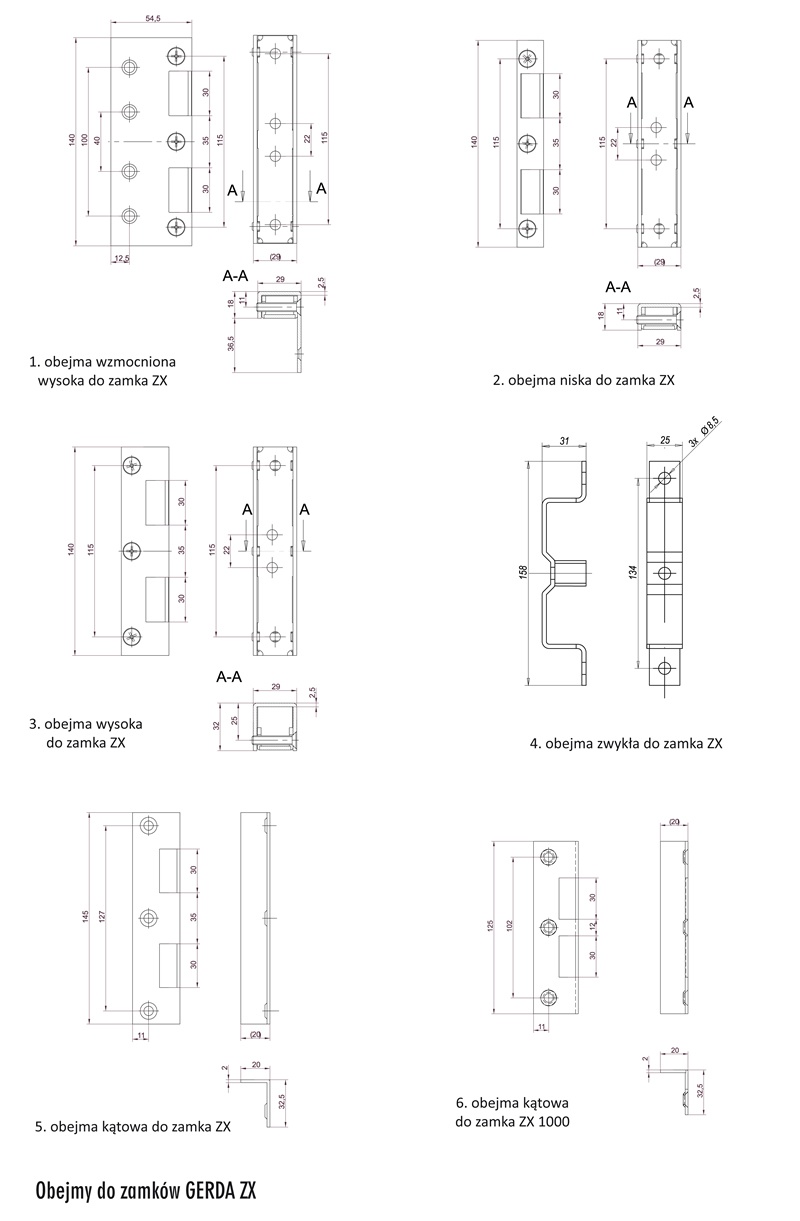

Clamps
clamps
ESCUTCHEONS
escutcheons
![](https://gerda.pl/wp-content/uploads/2019/02/01-38_1500-1-150x150.jpg)
Weather plate for the ZX lock
![](https://gerda.pl/wp-content/uploads/2019/02/02-34_1500-1-150x150.jpg)
Plate, reinforced for the ZX lock, white
![](https://gerda.pl/wp-content/uploads/2019/02/03-31_1500-1-150x150.jpg)
Plate, reinforced for the ZX lock, bronze
![](https://gerda.pl/wp-content/uploads/2019/02/04-26_1500-1-150x150.jpg)
Plate reinforced for the ZX lock – graphite
![](https://gerda.pl/wp-content/uploads/2019/02/05-20_1500-1-150x150.jpg)
Flat escutcheon for the ZX Plus lock, satin
![](https://gerda.pl/wp-content/uploads/2019/02/06-15_1500-1-150x150.jpg)
Flat escutcheon for the ZX Plus lock, olive
![](https://gerda.pl/wp-content/uploads/2019/02/07-16_1500-1-150x150.jpg)
Escutcheon plate for the ZX lock, stainless steel
![](https://gerda.pl/wp-content/uploads/2019/02/08-12_1500-1-150x150.jpg)
Flat escutcheon for the ZX lock, stainless steel
![](https://gerda.pl/wp-content/uploads/2019/02/09-10_1500-1-150x150.jpg)
Escutcheon plate for lock ZE black
![](https://gerda.pl/wp-content/uploads/2019/02/10-10_1500-1-150x150.jpg)
Flat escutcheon for the ZE lock, black
Construction and approvals
construction-and-approvals
Approvals
- Institute of Precision Mechanics (IMP)
Certificates in the form of PDF files can be found in the download section.
![Construction and approvals](https://gerda.pl/wp-content/uploads/2019/02/Tytan-ZX-budowa-2.jpg)
